Matrix & Video Wall
PS-H44VM
4K60 4×4 Seamless Matrix, Video Wall & Multiview
The Peapsonic PS-H44VM is a professional 4-input, 4-output HDMI 2.0 matrix switcher combining seamless matrix routing, 2x2 video-wall processing and multiview presentation in a compact 1U enclosure. Any of four HDMI sources can be routed to any output, while dedicated operating modes support flexible display arrangements. The unit supports video up to 4K at 60 Hz, HDCP 2.2, HDR10 and a broad range of PCM, Dolby and DTS audio formats. Front-panel controls, IR and RS-232 enable straightforward local and integrated system operation.
Key Features
- Four HDMI inputs and four HDMI outputs.
- Seamless switching for professional presentation systems.
- Video resolutions up to 4K@60 Hz.
- HDMI 2.0 and HDCP 2.2 compliance.
- 2x2 video wall using four selectable source inputs.
- Multiview mode for combining multiple sources on one display.
- Independent balanced analogue audio outputs 1-4.
- Front-panel Matrix, Video Wall and MultiView modes.
- IR reception and RS-232 serial control.
- Save/load controls for repeatable operating configurations.
Technical Specifications
| Model | PS-H44VM |
|---|---|
| PCM | 2.0CH |
| Product type | 4x4 seamless HDMI matrix |
| Multichannel PCM | 5.1CH / 7.1CH |
| HDMI / HDCP | HDMI 2.0 / HDCP 2.2 |
| Dolby Digital | 2.0CH / 5.1CH |
| Maximum video | Up to 4K@60 Hz |
| Dolby Digital Surround | 2.0CH |
| Dynamic range | SDR, HDR10 |
| Dolby TrueHD | 7.1CH |
| Video-wall mode | 2x2, selectable source |
| DTS | 2.0CH / 5.1CH |
| Multiview | Multiple sources / one display |
| DTS-HD Master | 5.1CH / 7.1CH |

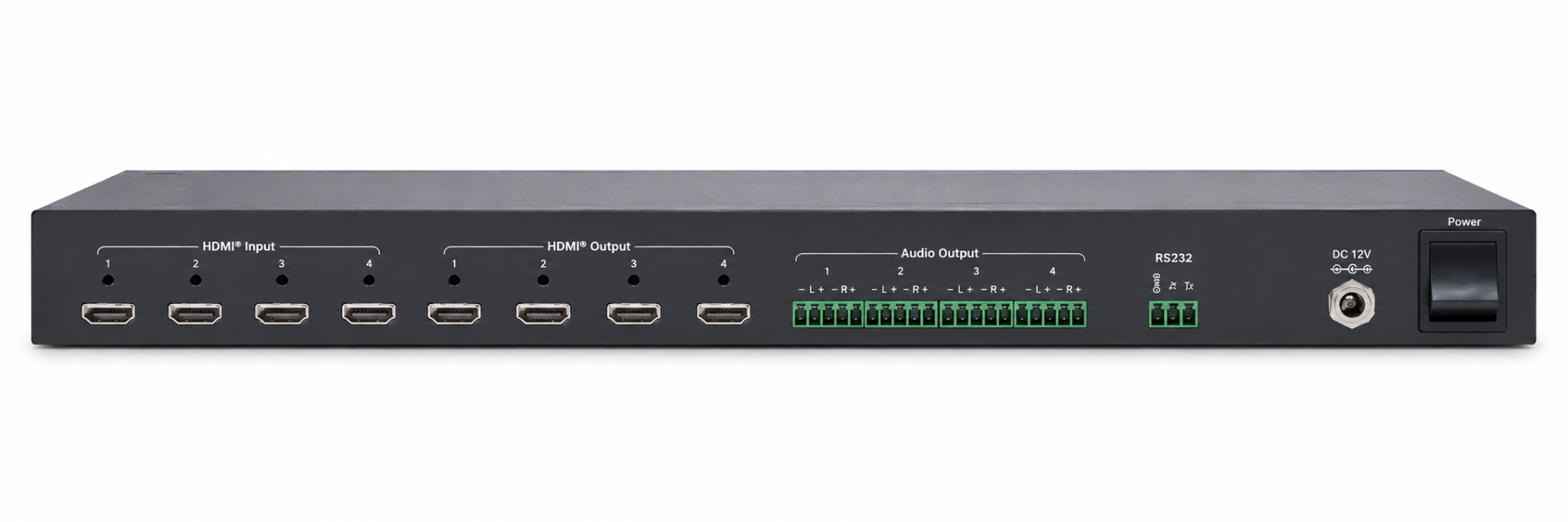

| HDMI inputs | 4 x Type-A female |
| DTS:X Master | 7.1CH |
| HDMI outputs | 4 x Type-A female |
| IR support | 20-60 kHz, +/-45 deg, 5 m |
| RS-232 baud | 115200 bps |
| Audio outputs | 4 x balanced analogue |
| Power supply | 12 V / 2 A |
| Operating altitude | Up to 2000 m |
| Power consumption | 19.2 W |
| Humidity | Up to 95% |
| Power saving | 1.56 W |
| Dimensions | 180 x 437 x 44 mm |
| Operating temp. | 0 to 55 deg C |
| Weight | 2036 g |
| Storage temp. | -40 to 80 deg C |
| Warranty | 3 years parts and labor |
Refer to the datasheet for complete operating conditions and model selection.
