HDMI & HDBaseT Extenders
PS-HCW-TR70
4K60 HDBaseT Wallplate Extender Kit

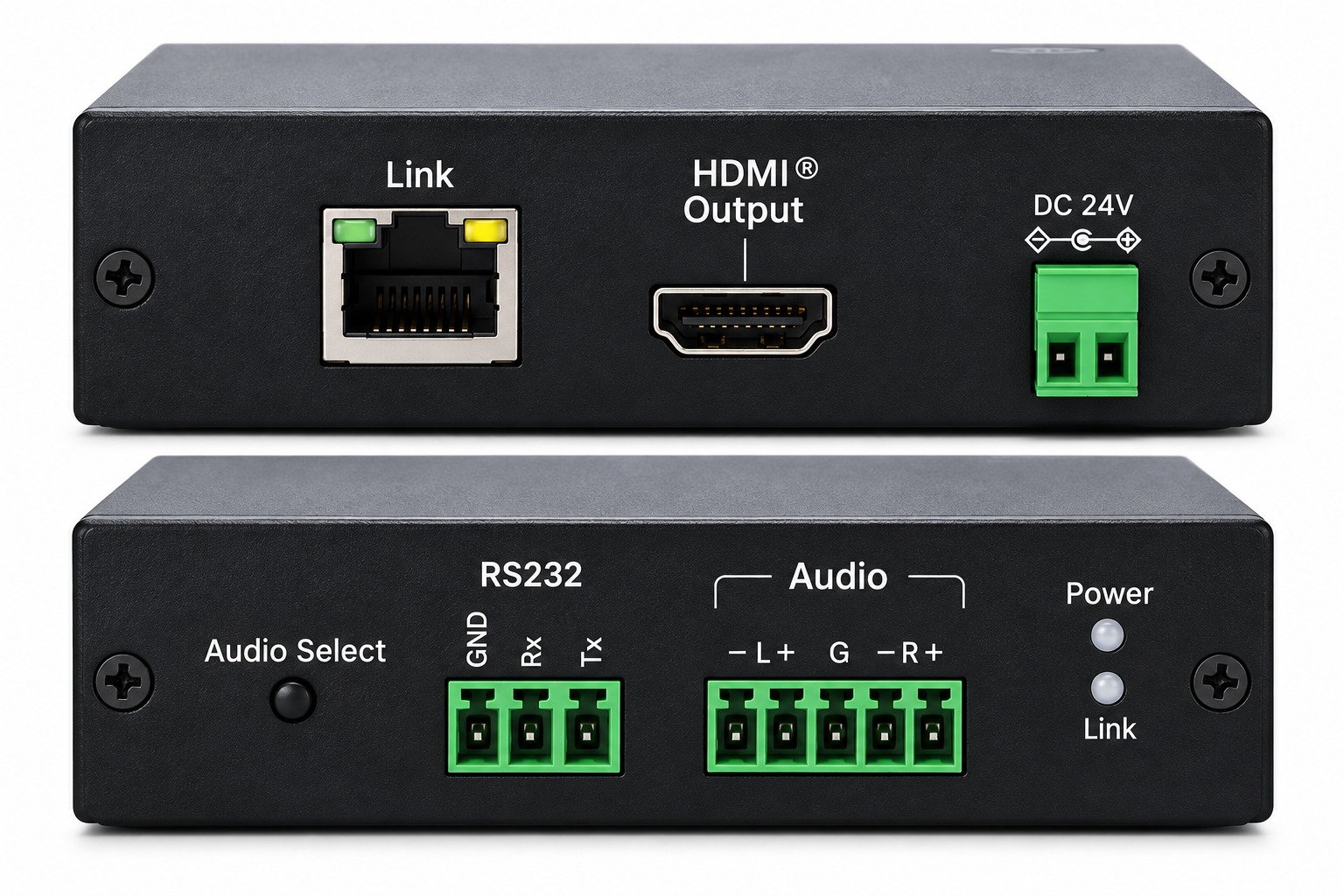

The Peapsonic PS-HCW-TR70 is a wallplate transmitter and receiver extender kit for professional 4K presentation systems. The transmitter accepts either an HDMI source or a USB-C source supporting DisplayPort Alt Mode, and sends the selected video and embedded audio to the receiver over a single CAT6 cable at distances up to 70 metres. At the display end, the receiver provides HDMI output, balanced analogue audio de-embedding and RS-232 connectivity. Front-panel source selection and status LEDs make the wallplate easy to operate in meeting rooms, classrooms, lecterns and collaboration spaces.
Key Features
- HDMI and USB-C inputs with front-panel source selection.
- USB-C input supports DisplayPort Alternate Mode video.
- HDMI 2.0 and HDCP 2.2 compatibility.
- Supports video resolutions up to 4K@60 Hz.
- Extends video and audio up to 70 m over CAT6.
- Receiver HDMI output for a display or projector.
- Balanced stereo analogue audio de-embedding at receiver.
- RS-232 terminals for professional control integration.
- HDR, HDR10 and HDR10+ dynamic-range formats.
- PCM, DTS and Dolby Digital multichannel audio support.
Technical Specifications
| Model | PS-HCW-TR70 |
|---|---|
| Audio impedance | 500 ohm |
| Standard | HDMI 2.0 / HDCP 2.2 |
| Audio SNR | 114 dB, A-weighted |
| Maximum video | 4K@60 Hz |
| Dynamic range | 114 dB |
| Transmission | Up to 70 m over CAT6 |
| THD+N | -94 dB |
| Dynamic range | SDR, HDR, HDR10, HDR10+ |
| Operating temp. | 0 to 55 deg C |
| Audio - PCM | 2CH, 5.1CH, 7.1CH |
| Storage temp. | -40 to 80 deg C |
| Audio - DTS | 2CH, 5.1CH |
| Humidity | Up to 95% |
| Dolby Digital | AC-3 2CH / 5.1CH |
| Operating altitude | Up to 2000 m |
| TX dimensions | 120 x 70 x 36 mm |
| TX weight | 88.6 g |
| RX dimensions | 123 x 88 x 32 mm |
| RX weight | 248.4 g |
| Warranty | 3 years parts and labor |
Refer to the datasheet for complete operating conditions and model selection.
