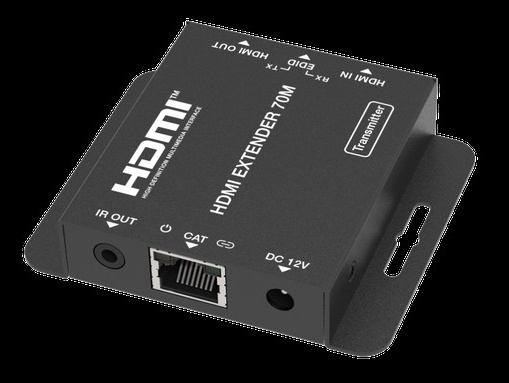

The PS-HDE40 HDMI Extender is designed to extend HDMI video, audio and IR control signals over a single CAT6 cable. It supports transmission up to 70 meters for Full HD 1080p and up to 40 meters for 4K@30Hz resolution, with HDMI loop out, EDID copy and one-way POC.
The PS-HDE40 HDMI Extender is designed to extend HDMI video, audio and IR control signals over a single CAT6 cable. It supports transmission up to 70 meters for Full HD 1080p and up to 40 meters for 4K@30Hz resolution, with HDMI loop out, EDID copy and one-way POC.
| Model | PS-HDE40 |
|---|---|
| HDMI Standard | HDMI 2.0 |
| HDCP | HDCP 1.4 |
| Video Resolution | Up to 4K@30Hz YUV 4:4:4 |
| Transmission Distance | CAT6: 70m @1080p, 40m @4K30; CAT5e: 60m @1080p, 35m @4K30 |
| Audio Formats | PCM7.1, Dolby TrueHD, DTS-HD |
| POC | One-way |
| IR | One-way |
| Power Supply | DC 12V / 1A |
| Housing | Metal |
